Our Products
Products to get you going
Manglam Scaffolding Pvt. Ltd. (MSPL) offers a vast itinerary in the field of construction and scaffolding equipment. From reliable cuplock systems and heavy-duty props to robust shuttering plates and adjustable jacks, our rental inventory ensures your site is equipped with the safest, highest-quality tools available. Browse our structural solutions below to find the exact components to keep your site operational.

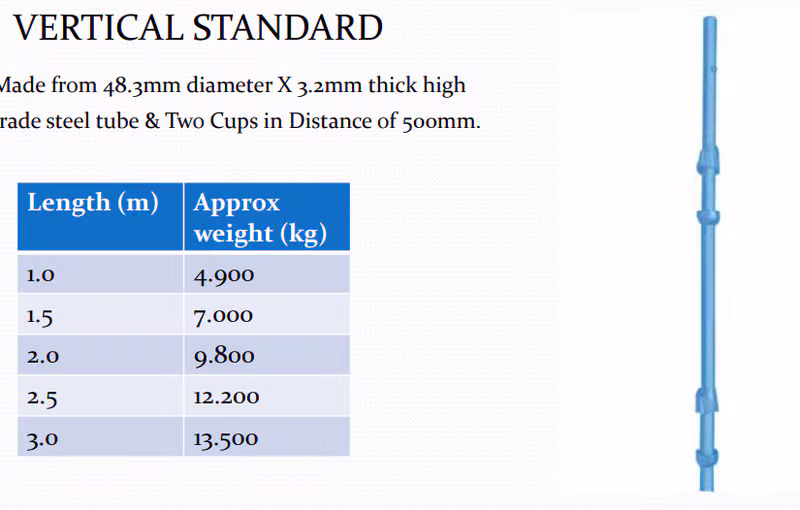

Vertical Standard
Made from 48.3mm diameter X 3.2mm thick high grade steel tube & Two Cups in Distance of 500mm.
| Length (m) | Approx weight (kg) |
|---|---|
| 1.0 | 4.900 |
| 1.5 | 7.000 |
| 2.0 | 9.800 |
| 2.5 | 12.200 |
| 3.0 | 13.500 |

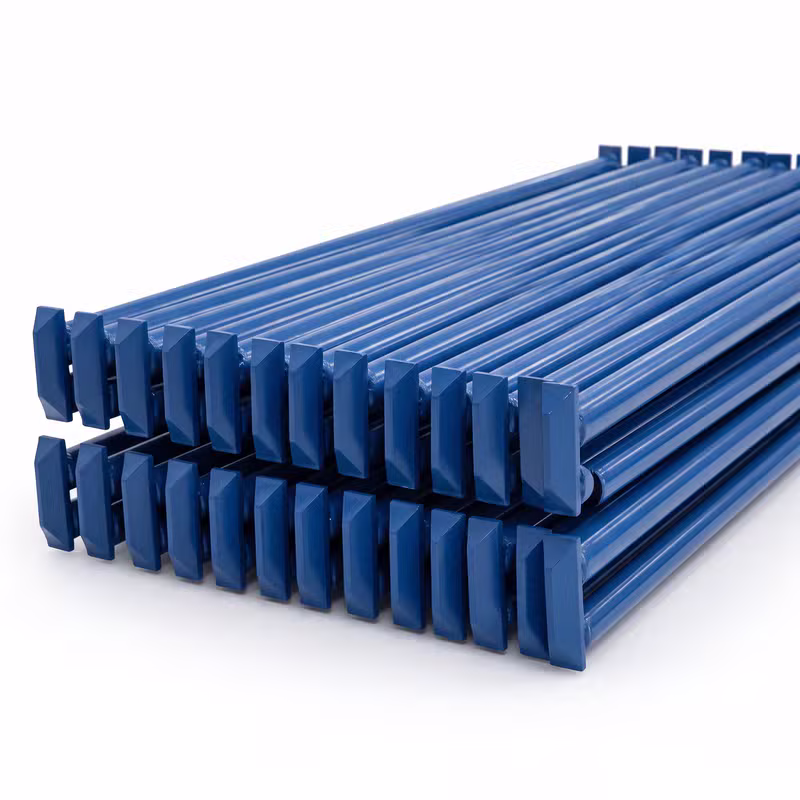

Ledger (Horizontal)
Made from 48.3mm diameter high grade steel tube with forged steel blade ends. Which locate into the bottom cups of the Standard (vertical) and are locked in place by the corresponding top cups.
| Length (mm) | Approx weight (kg) |
|---|---|
| 900 | 3.00 |
| 1000 | 3.200 |
| 1200 | 4.00 |
| 1500 | 5.00 |
| 2000 | 6.500 |

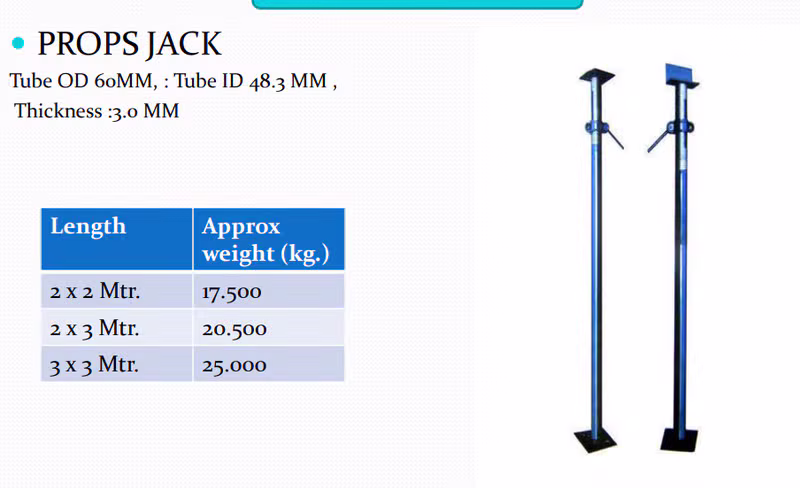

Props Jack
Tube OD 60MM, Tube ID 48.3 MM, Thickness: 3.0 MM
| Length | Approx weight (kg.) |
|---|---|
| 2 x 2 Mtr. | 17.500 |
| 2 x 3 Mtr. | 20.500 |
| 3 x 3 Mtr. | 25.000 |
Adjustable Base Jack & U-Head Jack
Adjustable jacks used for stable foundational support and top formwork alignment.
| Length (mm) | Approx weight (kg) |
|---|---|
| 450 MM. | 4.000 |

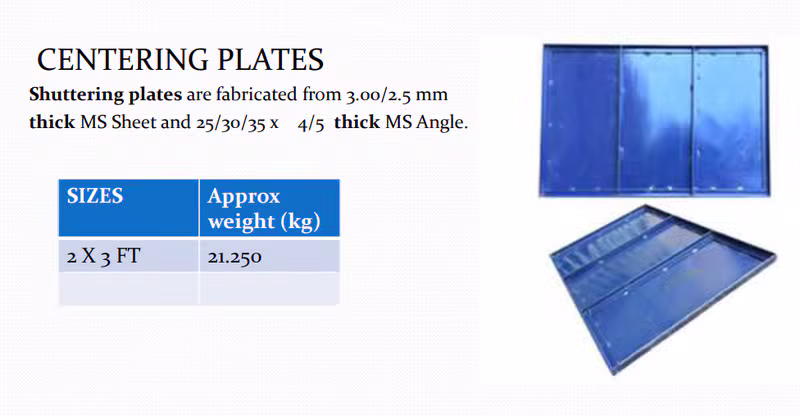

Centering Plates
Shuttering plates are fabricated from 3.00/2.5 mm thick MS Sheet and 25/30/35 x 4/5 thick MS Angle.
| SIZES | Approx weight (kg) |
|---|---|
| 2 X 3 FT | 21.250 |

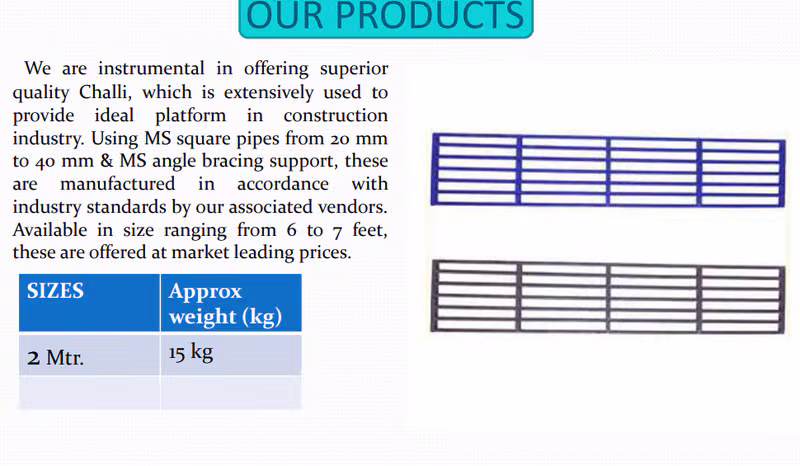

Challi (Scaffolding Platform)
We are instrumental in offering superior quality Challi, which is extensively used to provide ideal platform in construction industry. Using MS square pipes from 20 mm to 40 mm & MS angle bracing support, these are manufactured in accordance with industry standards by our associated vendors. Available in size ranging from 6 to 7 feet, these are offered at market leading prices.
| SIZES | Approx weight (kg) |
|---|---|
| 2 Mtr. | 15 kg |
Mild Steel Shuttering Channel
| Property | Details |
|---|---|
| MATERIAL | MILD |
| SIZES | 7-10 Feet |
| SHAPE | C NULL |
| WEIGHT | 18- 25 Kg. Approx |
